Basement Waterproofing in NJ & PA, including Sparta, Hopatcong & West Milford.

French Drain Systems Near West Milford, Vernon, Sparta

There are different tools to fix different problems. You wouldn't use a hammer to pound in a screw, right? In the same way, we wouldn't waterproof a basement with generic piping.

We have the drainage solutions you need to create dry, usable space in your basement or crawl space here at Century Masonry and Waterproofing. We have the ability to customize our unique basement drain system so that it specifically works for your home and problem- no matter what it may be. If you are looking for more information or a free basement waterproofing quote, call or e-mail us today! Our installations take 1-2 days.

Before and After
  • Basement Waterproofing in Andover NJ
    Before
    Basement Waterproofing in Andover NJ
    After

    This is a before and after of a basement we waterproofed in Andover, NJ. Our client has very flat property in an area that is prone to minor flooding.

       We installed DrainTile with CleanSpace and a TripleSafe, to control the hydrostatic pressure that was occurring. We also installed block work in 3 of the 4 windows to elevate the existing grade. The fourth window was a little above grade so we installed glass block to allow light to enter without the elements (humidity, insects).

       To complete this project we installed our SaniDry Sedona and drained it into the system.

The WaterGuard® Drainage System

Illustration of an exterior French drain system installed around the perimeter of a home

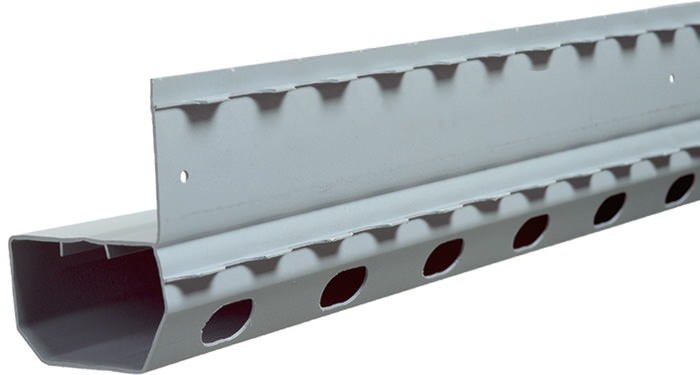

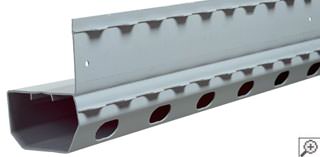

WaterGuard®, which is our most popular drainage system, and is the perfect solution for most basement waterproofing applications.

Our unique system is unlike any old-fashioned drain tile systems which are installed on the outside of the home. WaterGuard® is installed just underneath the perimeter edge of the basement floor to solve your wet basement problems once and for all!

WaterGuard® Specifications

  • Will not clog with mud -- The system sits on top of the footing, away from the "mud zone" underneath your floor. Water is collected without the risk of clogs that would halt your system.
  • Able to waterproof concrete block foundation walls -- Weep holes are drilled at the bottom of the blocks to drain the hollow cavities.
  • Includes wall flange with 3/8" opening to collect water from walls -- There's no gap on the basement floor to let humidity into the space or to collect debris.


DryTrak® Monolithic Floor Drain

Illustration of our perimeter drainage system installed in a basement

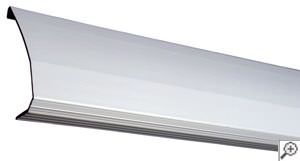

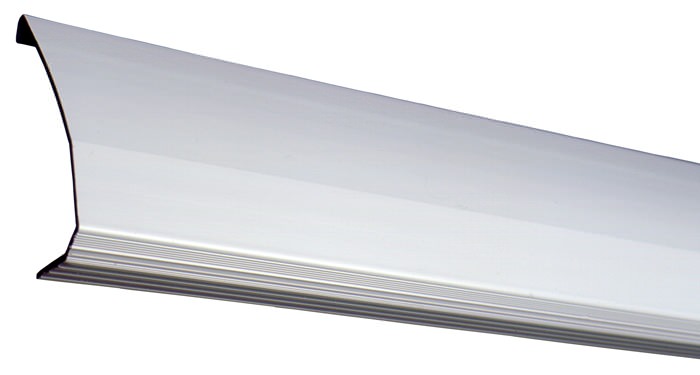

DryTrak® is a baseboard drainage system that is installed above the floor and along the inside perimeter of the basement.

If your floor and footing were poured as one piece, called a monolithic foundation, DryTrak® is the only drainage system that's appropriate. DryTrak® is also ideal for other functions when jack-hammering the floor is not an option- for example- in basements with radiant heat.


DryTrak® Specifications

  • Will not collect mud or debris -- As a sealed basement drain that is placed on top of your basement floor and against the wall, there is no opening for debris to collect in the system from the basement floor.
  • Installs without jackhammering a drain channel -- Your monolithic floor (and your foundation footing) will not be damaged during installation.
  • Able to waterproof concrete block foundation walls -- As with WaterGuard®, weep holes are drilled at the bottom of the block to drain cavities.

Other Drainage Systems

Along with our WaterGuard® and DryTrak® systems, we offer all of the following specialized drainage systems:

French drain for crawl space waterproofing SmartPipe:
Crawl Space Drainage
grated French drain system for waterproofing entryways TrenchDrain:
Grated Basement Drain
French drain with large openings to prevent clogging from iron ochre WaterGuard® IOS:
Iron Ochre System
wall flange designed to direct water to a French drain system FlowGuard:
Thin Floor System

SmartPipe™

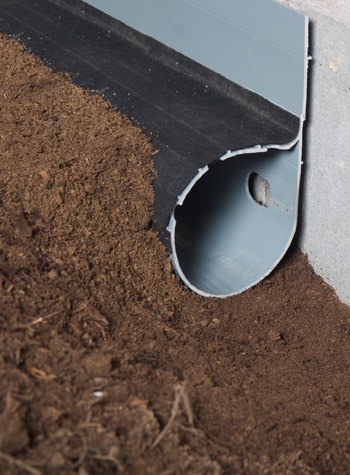

Perfect for the crawl space environment, this plastic piping system is designed to be installed in a drainage swale running along the perimeter.

Combined with a crawl space vapor barrier and sump pump, it will direct water underneath the plastic barrier to the sump pump, where the water is discharged from your home.

The SmartPipe™ system is the first custom-engineered crawl space drain on the market. With five perforated rows of drainage holes and a clog-resistant filter fabric, it's a cost-effective and long-lasting way to keep your space dry for the long haul.

crawl space drain system installed in Greene

Trench Drain

Many homeowners have concerns with water flowing in through exterior doorways, stairways, and garage door openings. A normal drainage system cannot address this problem.

For these situations, we recommend the TrenchDrain drain channel and grating system. This is specifically designed to intercept water at doorways and similar openings and direct it to your sump pump.

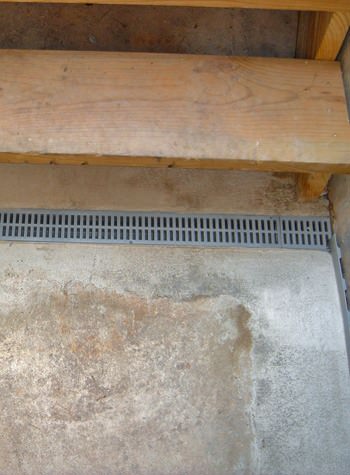

TrenchDrain resembles half of a piping system with a grate fitted snugly on top. The grate is flush with or slightly below the floor, where it can catch water entering from the outside.

grated basement drain system for the end of stair cases that leak

WaterGuard® IOS

In some rare cases, homeowners with high iron levels in their water will experience a thick, reddish-orange substance oozing through when the basement floods.

This material is called "iron ochre", and it comes from both bacterial origins and from chemical reactions in the soil. It can easily clog your drainage system and stain your concrete, as well as anything else it touches.

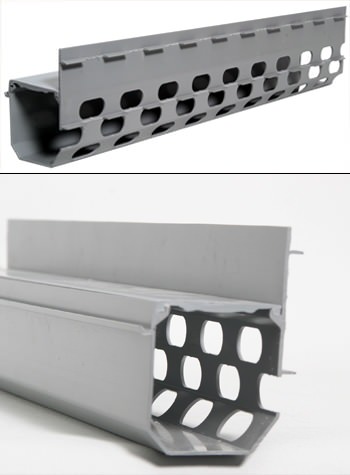

WaterGuard®: Iron Ochre System (IOS) is the answer for homeowners with iron ochre in their ground water. This drain is specifically designed with wide openings and a completely removable lid that will help your system avoid clogging and provide clear access for maintenance.

Our IOS system address iron ochre issues for basement drainage in places like Greene

FlowGuard

Installing a drainage system along the footing is the way to go with most perimeter drainage systems. However, when basement floors are very thin, it may be impossible to "hide" a normal drain under the floor in this way.

For homeowners with very thin basement floors, we recommend FlowGuard, along with a drain installed in front of the footing.

FlowGuard will collect water from the wall/floor joint, as well as the basement walls. It then directs it to a drain that's placed in front of your foundation footer and underneath the floor. It's the best of both worlds for an unusual situation.

below foundation slab drain system for installing a French drain in Greene
